Allegro Sonata Hoist

Code: LA0070
Print Quick Enquiry

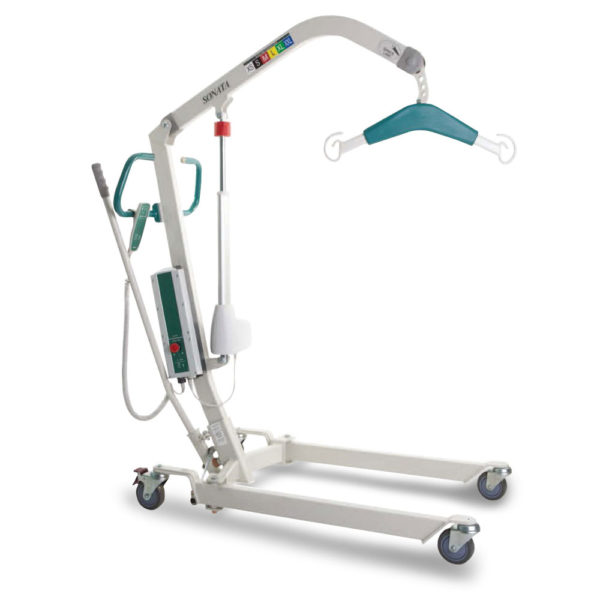

  • Innovative and ergonomic compact mobile patient lifting hoist
  • Designed primarily for domestic use or as a lightweight institutional hoist
  • Provides superior patient space through the use of Space Link technology
  • The unique feature of Space Link allows a patient to be rotated through 360 degrees at full lift height, making the carer’s job easier and safer
  • Offers more patient space than most other larger size lifters
  • Tested and complies to Australian Standards AS ISO 10535-2002
Base Length 1005mm
External Base Width Closed 605mm
External Base Width Opened 1070mm
Internal Base Width Closed 510mm
Internal Base Width Open 975mm
Under Bed Clearance 130mm
Minimum Height Yoke 420mm
Maximum Height Yoke 1735mm
Average Lift Range 870mm
Under Base Height 55mm
Maximum Hoist Reach 875mm
Minimum Hoist Reach 555mm
Hoist Reach at Maximum Height 555mm
Lifter Weight 41kg
Minimum Storage Height 1260mm
Safe Working Load 150kg
